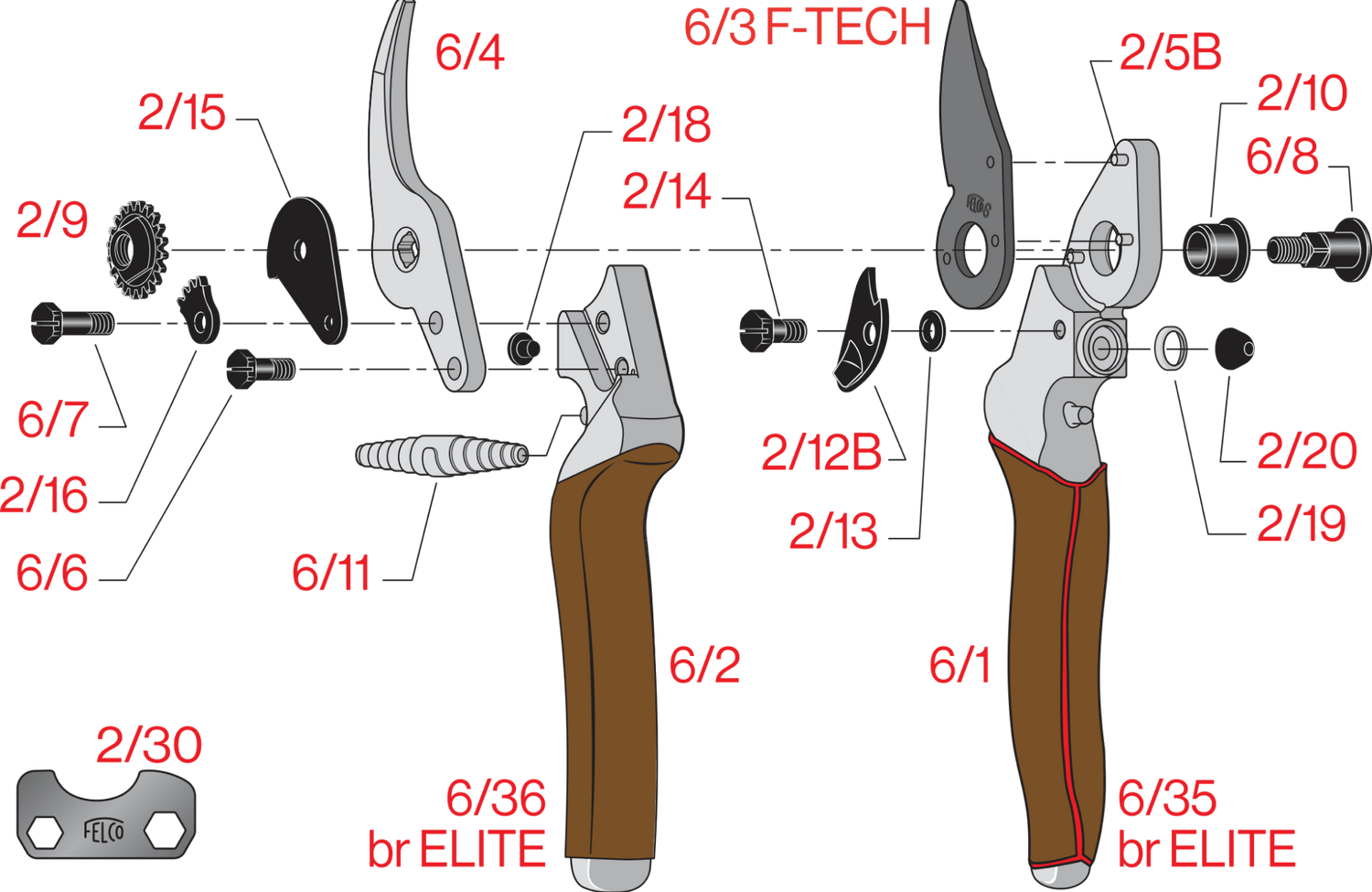

1 x 2/16
Toothed segment

1 x 2/12B + 2 x 2/13 + 1 x 2/14
Kit: complete two position thumb catch assembly

1 x 2/20
Shock absorber

1 x 2/18
Bumper

1 x 2/13
Thumb catch spring washer

1 x 2/9
Toothed nut

1 x 2/19
Crimped ring

1 x 2/5B
Blade rivet

1 x 2/10
Bushing

1 x 6/4 + 1 x 6/6
Counter blade with screw

F-Tech is a non-stick, hydrophobic coating, resisting to scratches and abrasion. Its unparalleled properties reduce friction between blade, counter-blade and branch to be cut as no one else. As a result, cutting effort is considerably reduced, and it's much easier to cut hardwoods or large-diameter wood. F-Tech also prevents sap and bacteria from adhering to the blade. A considerable asset for increasing your yield and reducing musculoskeletal pain.

1 x 6/7
Screw for toothed segment

1 x 6/6
Counter blade screw

1 x 2/15
Base plate

1 x 6/8
Bolt

1 x 6/32 + 1 x 2/18
Complete handle assembly without counter blade

1 x 6/31 + 1 x 2/19 + 1 x 2/20
Complete handle assembly without blade
